Dwyer Series 629

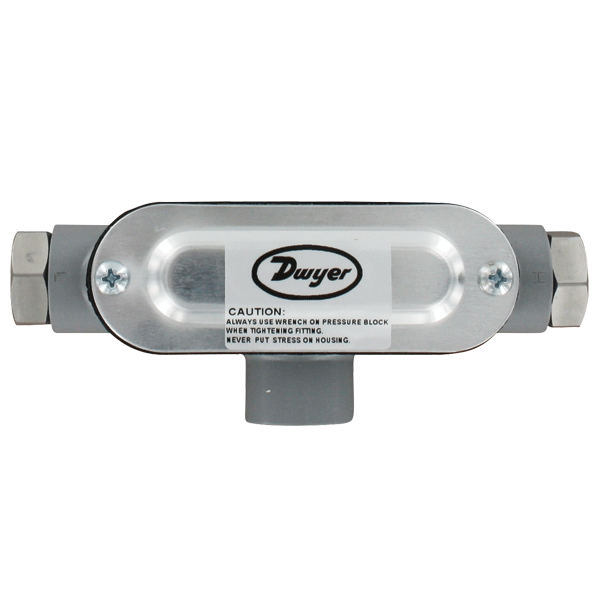

Series 629 Wet/Wet Differential Pressure Transmitter

0.5% Accuracy, NEMA 4X Enclosure

The Dwyer Series 629 Differential Pressure Transmitter monitors differential pressure of air and compatible gases and liquids with 0.5% accuracy. The design employs dual pressure sensors converting pressure changes into a standard 4-20 mA output signal for two wire circuits. Small internal volume and minimum moving parts result in exceptional response and reliability. Terminal block zero and span adjustments are easily accessed under the top cover. The Series 629 Differential Pressure Transmitter is designed to meet NEMA 4X (IP66) construction.



Specifications

  • Service:Compatible gases and liquids.
  • Wetted Materials:Without valve: 316, 316L SS. Additional wetted parts with 3-way valve option: Buna-N, silicone grease, PTFE, brass 360, copper, reinforced acetal copolymer.
  • Accuracy:±0.5% F.S. (includes linearity, hysteresis, and repeatability).
  • Temperature Limits:0 to 200°F (-18 to 93°C).
  • Compensated Temperature Limits:0 to 175°F (-18 to 79°C).
  • Pressure Limits:See Ordering page.
  • Thermal Effect:0.02%/°F (0.036%/°C) includes zero and span.
  • Power Requirements:13 to 30 VDC.
  • Output Signal:4 to 20 mA. Optional 0-5 or 0-10 VDC.
  • Response Time:50 msec.
  • Loop Resistance:0-1300 ohms maximum for current output. For voltage outputs, minimum load resistance: 2000 ohms.

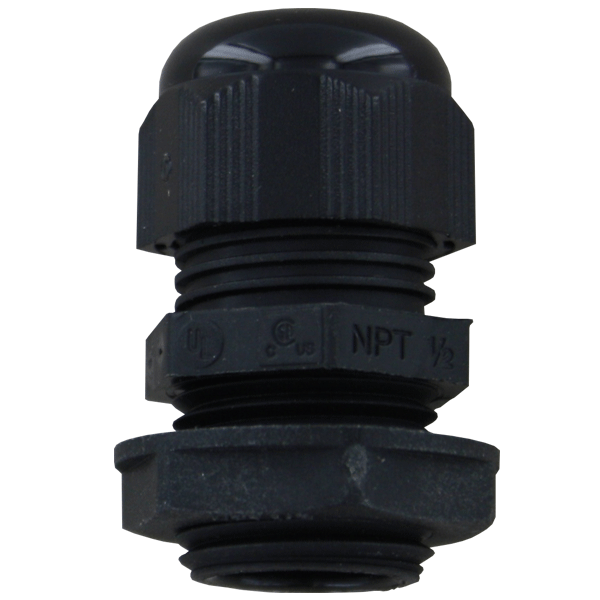

  • Electrical Connections:Terminal block; 1/2″ female NPT conduit.
  • Process Connection:1/4″ female NPT.
  • Enclosure Rating:Designed to meet NEMA 4X (IP66).
  • Mounting Orientation:Mount in any position.
  • Weight:10.1 oz (286 g).
  • Agency Approvals:CE.
    NOTE:Pressures exceeding the working pressure limit may cause a calibration shift of up to ±3% of full scale.



Options

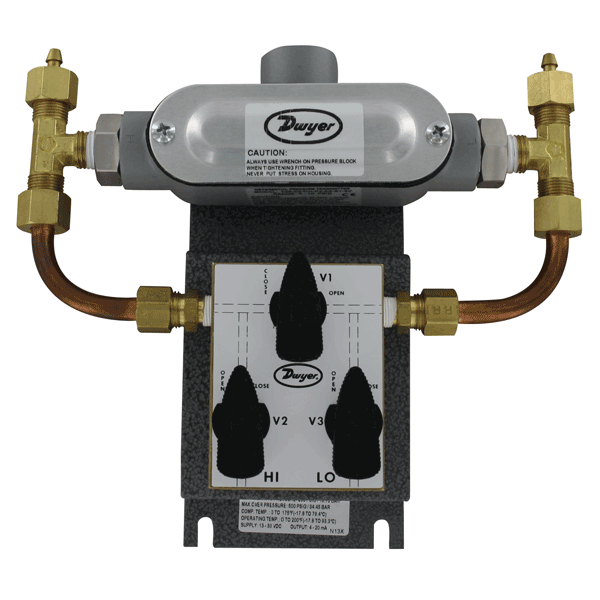

-3V 3 Way Valve Package for Chillers.

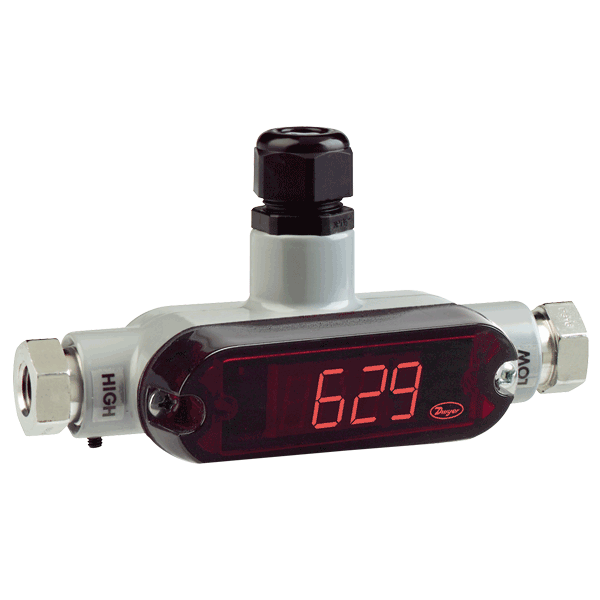

-LED 4.5 Digit LED Display.



Available Models


Standard Transmitter with 4-20 mA Output

MODELDESCRIPTION
629-02-CH-P2-E5-S1Wet/wet differential pressure transmitter, range 10 psid, working pressure 20 psi, over pressure 100 psi.
629-03-CH-P2-E5-S1Wet/wet differential pressure transmitter, range 25 psid, working pressure 50 psi, over pressure 250 psi.
629-04-CH-P2-E5-S1Wet/wet differential pressure transmitter, range 50 psid, working pressure 100 psi, over pressure 250 psi.
629-05-CH-P2-E5-S1Wet/wet differential pressure transmitter, range 100 psid, working pressure 200 psi, over pressure 500 psi.


Standard Transmitter with 0-10 Volts Output

MODELDESCRIPTION
629-02-CH-P2-E5-S5Wet/wet differential pressure transmitter, range 10 psid, conduit housing, 1/4" NPT female process connections, 0-10 V output.
629-03-CH-P2-E5-S5Wet/wet differential pressure transmitter, range 25 psid, conduit housing, 1/4" NPT female process connections, 0-10 V output.
629-04-CH-P2-E5-S5Wet/wet differential pressure transmitter, range 50 psid, conduit housing, 1/4" NPT female process connections, 0-10 V output.
629-05-CH-P2-E5-S5Wet/wet differential pressure transmitter, range 100 psid, conduit housing, 1/4" NPT female process connections, 0-10 V output.


Transmitter with 3-way Valve Manifold Assembly 4-20 mA

MODELDESCRIPTION
629-02-CH-P2-E5-S1-3VWet/wet differential pressure transmitter with 3-way valve package, range 10 psid, working pressure 50 psi, over pressure 250 psi.
629-03-CH-P2-E5-S1-3VWet/wet differential pressure transmitter with 3-way valve package, range 25 psid, working pressure 50 psi, over pressure 250 psi.
629-04-CH-P2-E5-S1-3VWet/wet differential pressure transmitter with 3-way valve package, range 50 psid, working pressure 100 psi, over pressure 250 psi.
629-05-CH-P2-E5-S1-3VWet/wet differential pressure transmitter with 3-way valve package, range 100 psid, working pressure 200 psi, over pressure 500 psi.


Transmitter with 3-way Valve Manifold Assembly 0-10 Volts

MODELDESCRIPTION
629-02-CH-P2-E5-S5-3VWet/wet differential pressure transmitter, range 10 psid, conduit housing, 1/4" NPT female process connections, 0-10 V output, with 3-way valve manifold.
629-03-CH-P2-E5-S5-3VWet/wet differential pressure transmitter, range 25 psid, conduit housing, 1/4" NPT female process connections, 0-10 V output, with 3-way valve manifold.
629-04-CH-P2-E5-S5-3VWet/wet differential pressure transmitter, range 50 psid, conduit housing, 1/4" NPT female process connections, 0-10 V output, with 3-way valve manifold.
629-05-CH-P2-E5-S5-3VWet/wet differential pressure transmitter, range 100 psid, conduit housing, 1/4" NPT female process connections, 0-10 V output, with 3-way valve manifold.
