Series HM28 Digital Manometer

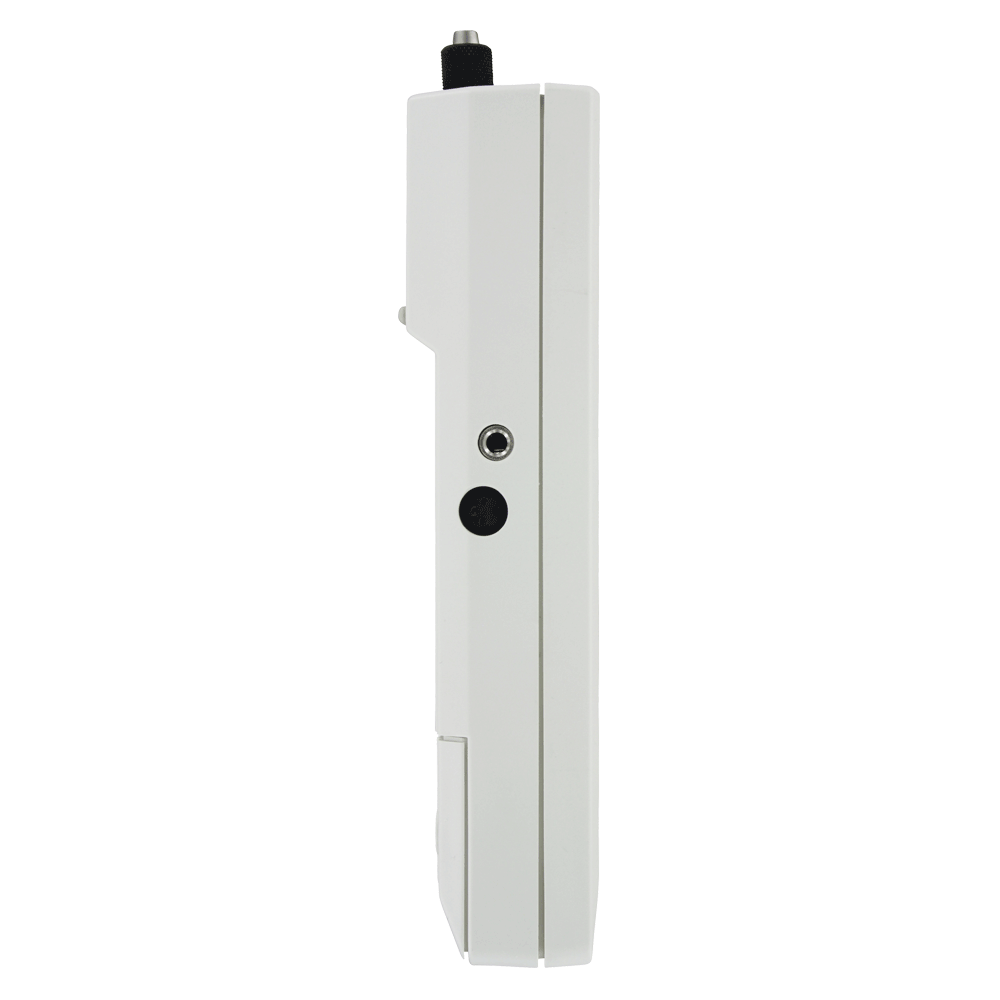

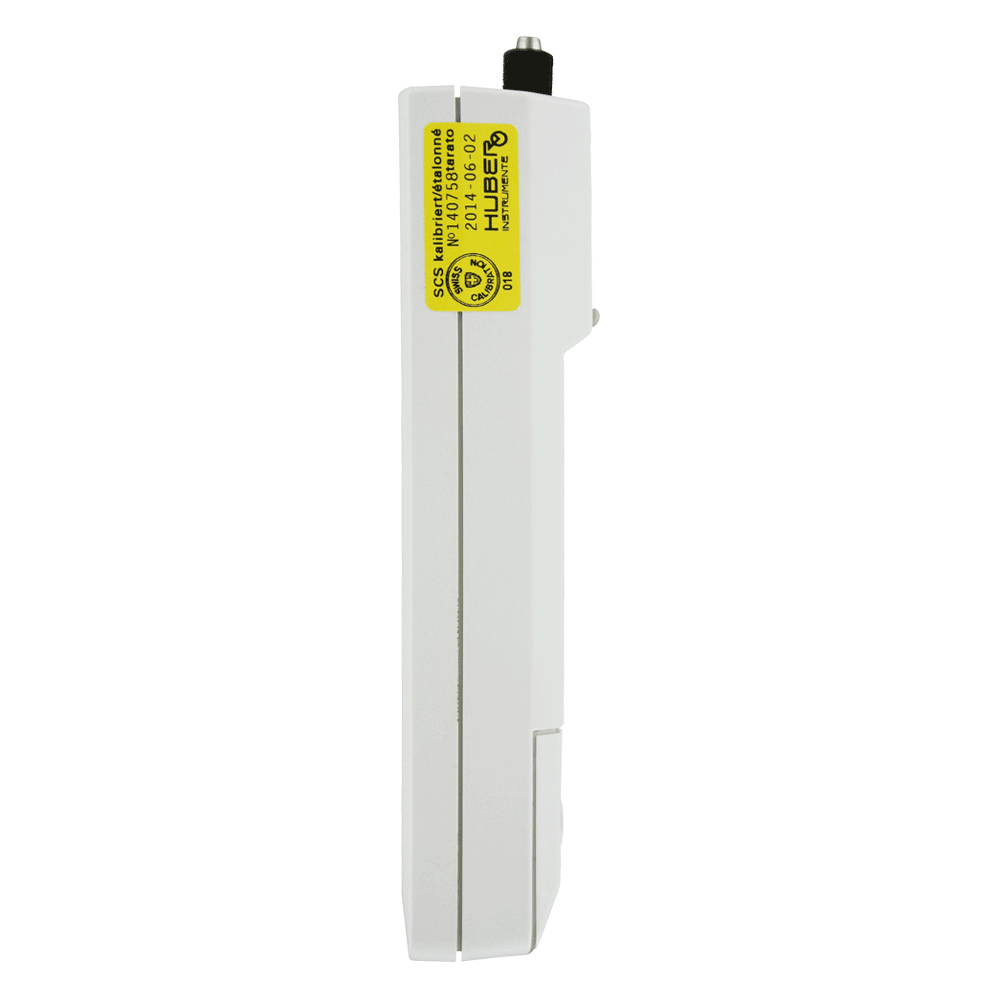

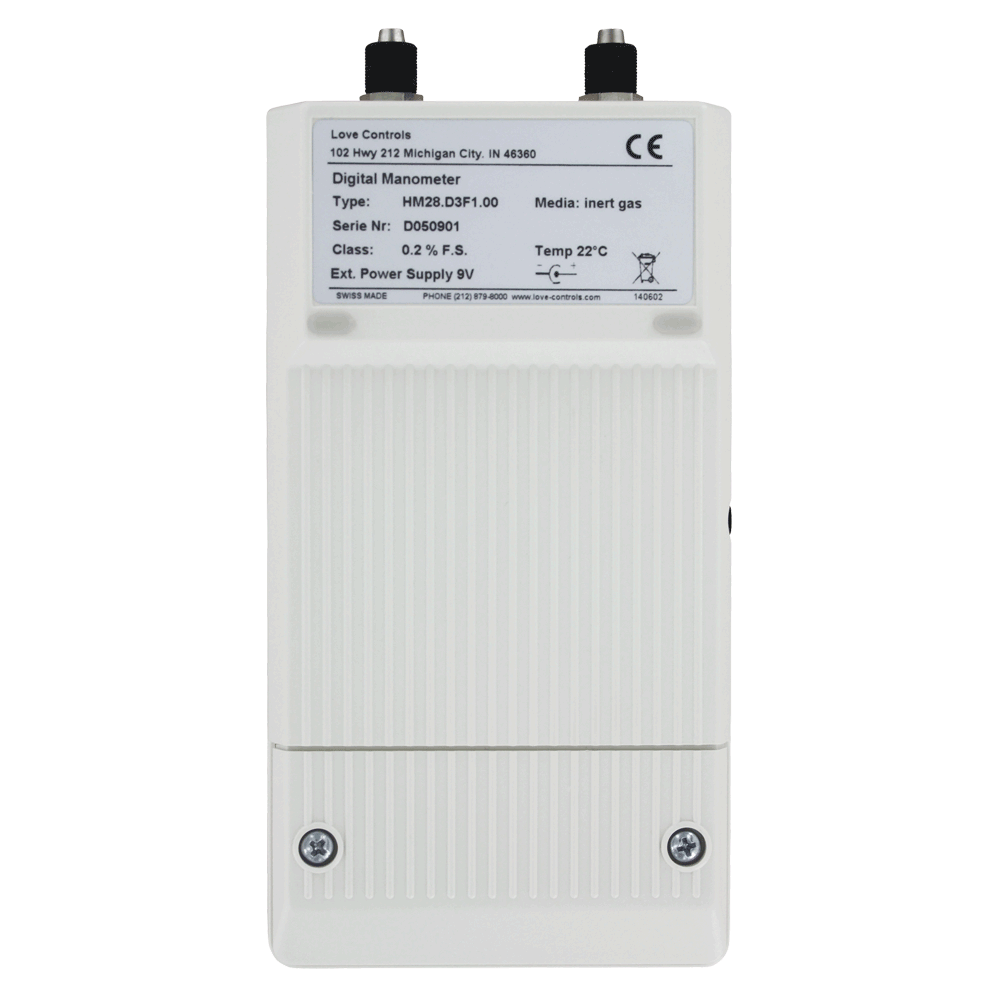

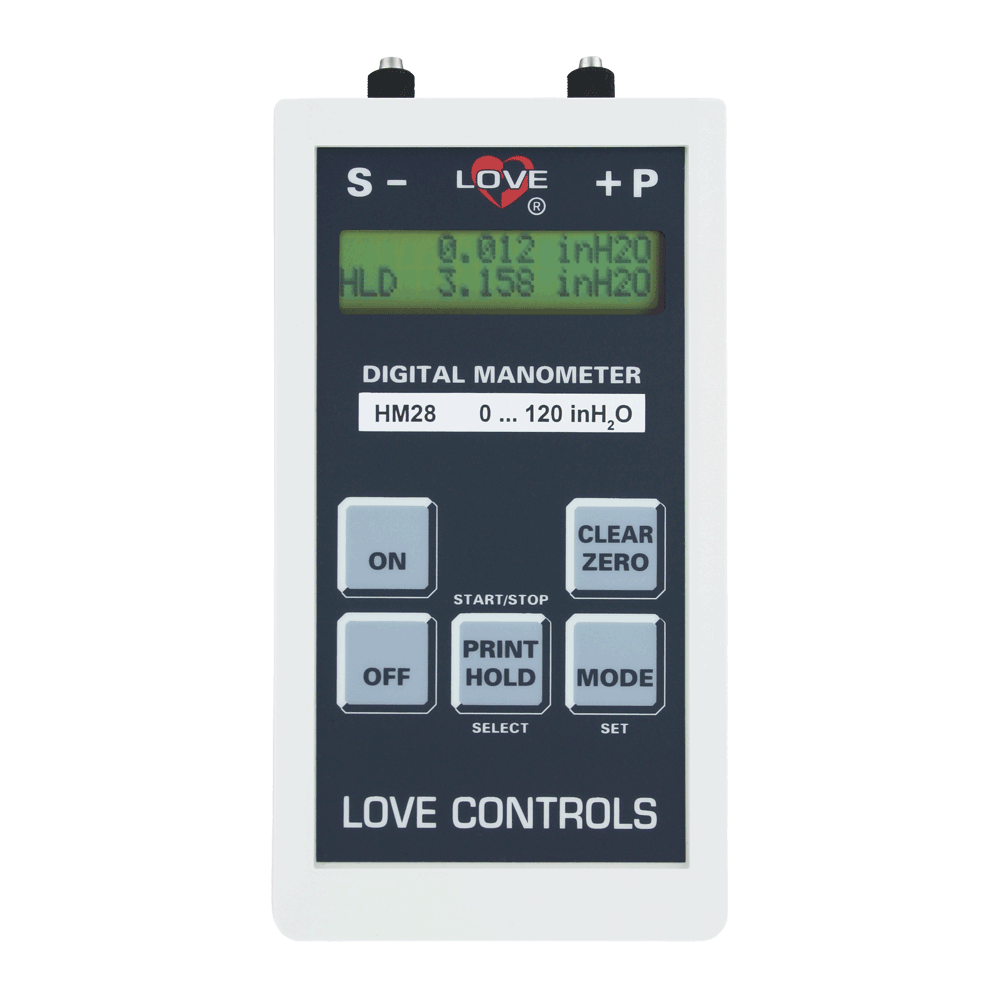

Dwyer Series HM28 Handheld Digital Manometer

High Accuracy (0.2%, 0.1% or 0.05%), Differential, Gage or Absolute

THE DWYER SERIES HM28 DIGITAL MANOMETER is a precision instrument designed to measure a wide range of pressures to a very high accuracy. The unit incorporates a variety of features in an easy to use format that makes it useful in a wide variety of applications. Features include: measurement in all common pressure ranges, display resolution to 0.001, differential or relative measurement, two line liquid crystal display, and adjustable auto power off to conserve battery. We are so proud of the accuracy of the HM28 that we provide a certificate of calibration with the unit at no additional cost. Depending on your application, the HM28 can be used as a secondary calibration standard for your other pressure instrumentation.

Specifications

  • Pressure Connection: Hose; 4/6 mm or 1/8″ NPT.
  • Accuracy: (Includes linearity, hysteresis, and repeatability): per order code. ±0.20% full scale ±1 digit. ±0.10% full scale ±1 digit. ±0.05% full scale ±1 digit.
  • Wetted Materials: 18/8 stainless steel.
  • Temperature Limits: 23 to 122°F (-5 to 50°C).
  • Storage Temperature: -4 to 140°F (-20 to 60°C).
  • Humidity: 30 to 95% rH, non-condensing.
  • Display: 2 line, 16 character, dot matrix LCD, with switchable display sizes.Power Requirements:9 V alkaline battery, installed functional, user replaceable. Can operate from external power supply of 7 to 14 VDC.
  • Current Consumption: <9 mA.
  • Memory: 964 measured values. Recording intervals adjustable from manual, 1, 5, 10, 20, 30 seconds, 1, 2, 3, 5, 10, 30, 60 minutes.
  • Case Protection: IP54 (NEMA 3).
  • Case Dimensions: 6″ x 3.27″ x 1.34″ in (152 x 83 x 34 mm).
  • Weight: 9.5 oz (270 g).
  • Maximum Measurement Rates: Stand alone: 2-1/2 readings/sec (0.1% and 0.05% ratings), 5 readings/sec (0.2% rating). Output to RS-232: 20 measurements/sec (0.2% rating). 10 measurements/sec (0.1% and 0.05% ratings).
  • RS-232 Baud Rate: Adjustable, 1200, 2400, 4800, or 9600 baud.
  • Agency Approvals: CE.
  • Service: Air and compatible gases.

Features

  • Microprocessor based
  • Differential, Gage, or Absolute
  • High Accuracy, 0.2%, 0.1%, or 0.05% with Calibration Certificate
  • Selectable Scales
  • Resolution to 0.000 of Selected Unit
  • Peak and Valley Indication
  • Hold Function
  • Programmable Display
  • Memory for up to 964 Readings
  • Output for Optional Printer or Computer Interface



MODELRANGEERROR LIMIT
HM28D3B100000-10" w.c.(2.5 kPa)0.2% F.S.
HM28D3C100000-28" w.c. (7 kPa)0.2% F.S.
HM28D3F100000-120" w.c. (30 kPa)0.2% F.S.
HM28D3H100000-14.5 psi (100 kPa)0.2% F.S.
HM28D3C300000-28" w.c. (7 kPa)0.05% F.S.
HM28D3F300000-120" w.c. (30 kPa)0.05% F.S.
HM28D3H300000-14.5 psi (100 kPa)0.05% F.S.
HM28D3K300000-100 psi (700 kPa)0.05% F.S.
HM28D3M310000-245 psi (1700 kPa)0.05% F.S.
HM28A3I100000-15.9 psia (0.2% F.S.) 110 kPa absAbsolute Pressure
