Series HM35

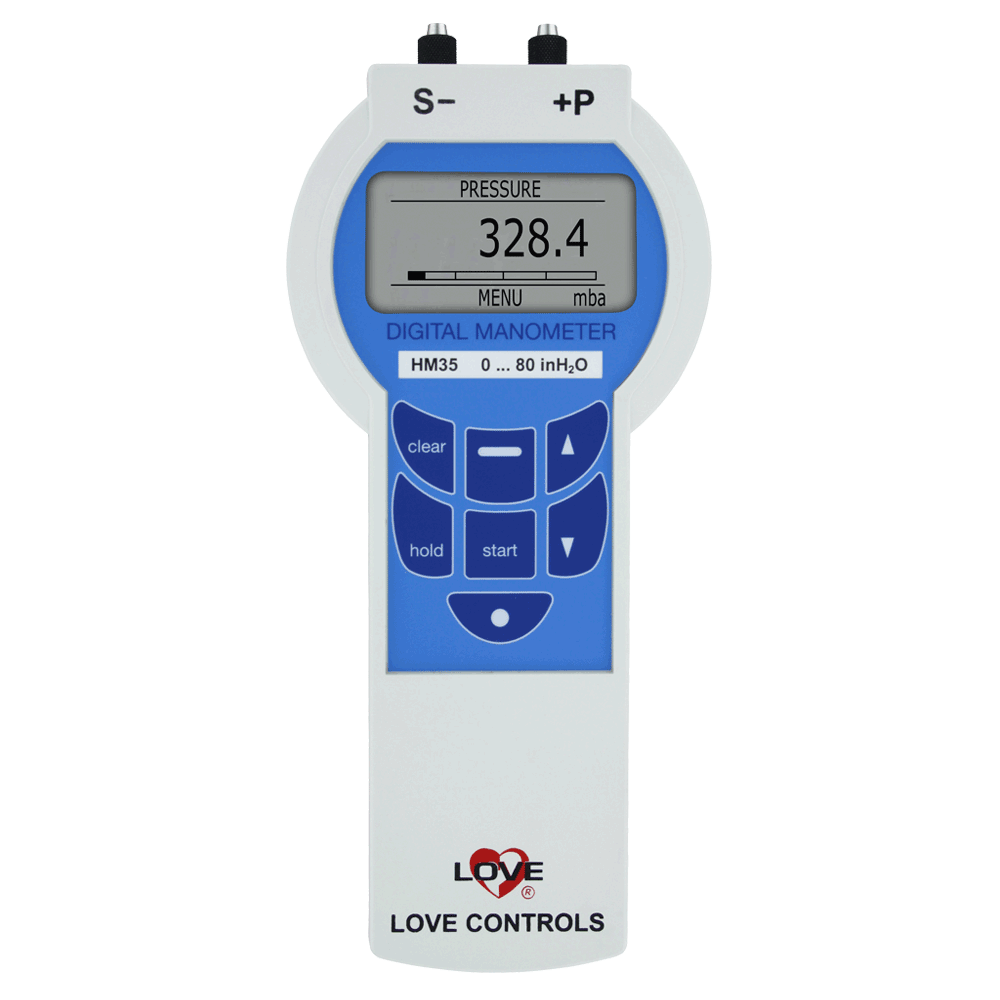

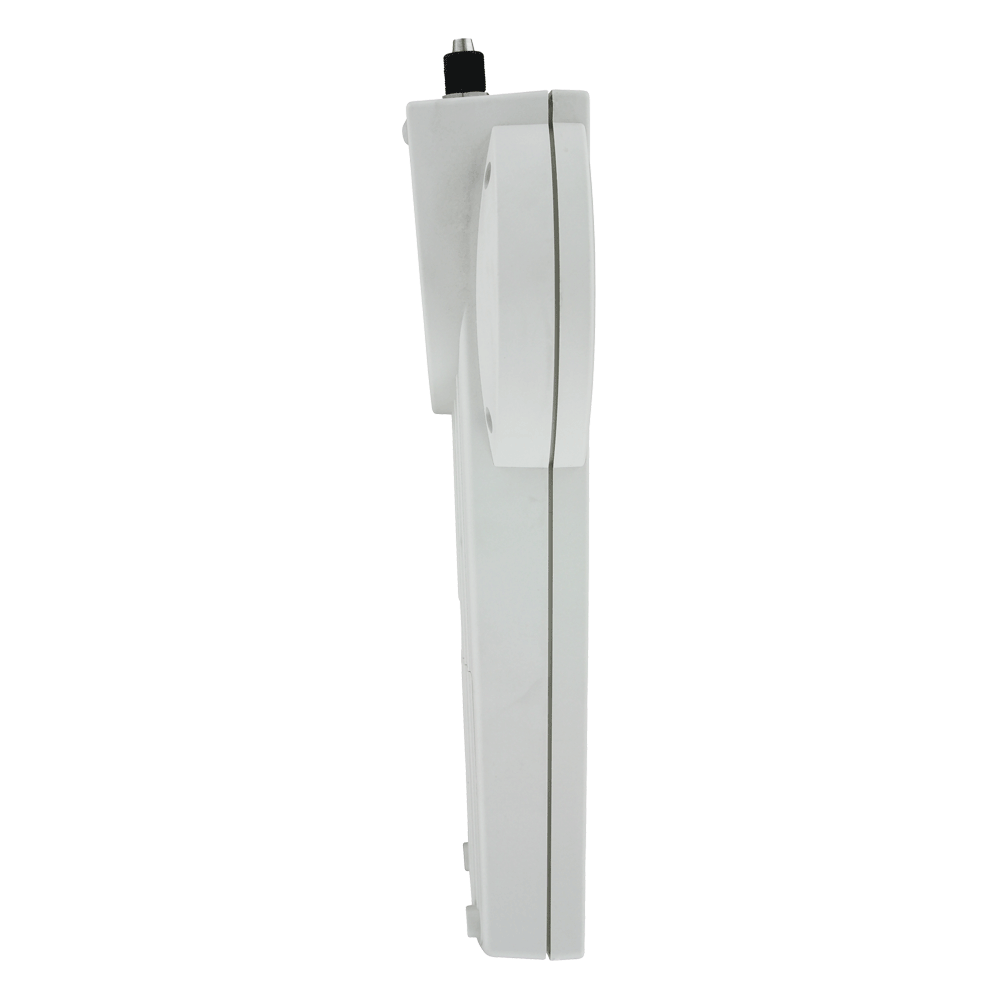

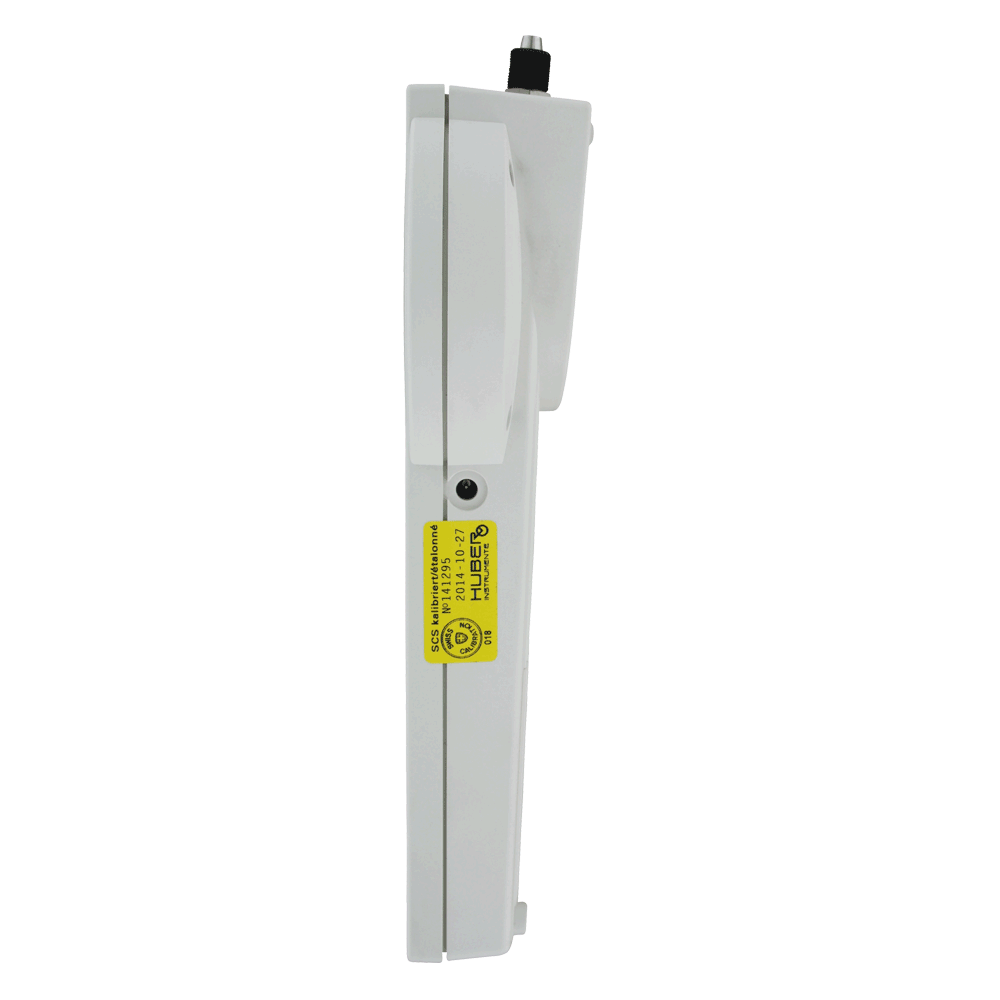

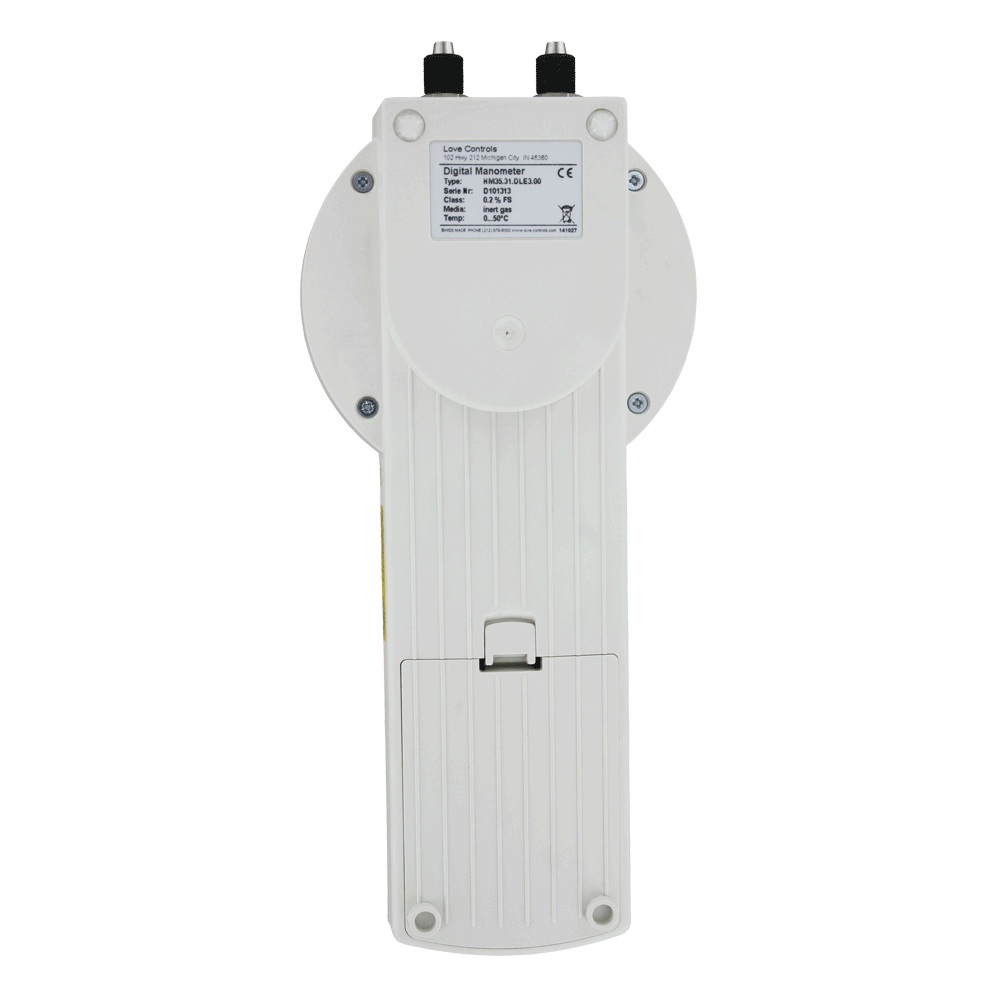

Series HM35 Precision Digital Pressure Manometer

Up to 0.05% Accuracy, Graphical Display, Data Logging Capability

THE HIGH PRECISION SERIES HM35 DIGITAL MANOMETER is designed to reliably measure and log pressure measurements for critical applications. This family of manometer can measure absolute pressure, differential pressure or gauge pressure with up to 0.05% accuracy. The data logging function can store up to 10,742 readings and transmit the readings to a PC through an IR serial port. The large display can graphically display trends in the data as well as peaks and valleys. The series HM35 comes standard with a calibration certificate so that the instrument can be used as a secondary calibration standard when testing other pressure instrumentation. This manometer is ideal for laboratories, calibration facilities, and other critical pressure applications.



Specifications

  • Power Requirements: (3) 1.5 V AA alkaline batteries, installed functional, user replaceable. Can operate on 6 to 9 VDC external power.
  • Service: Air and compatible gases.
  • Wetted Materials: 18/8 stainless steel.
  • Accuracy: (Includes linearity, hysteresis, and repeatability): Depending on model. ±0.20% full-scale ±1 digit; ±0.10% full-scale ±1 digit; ±0.05% full-scale ±1 digit.
  • Temperature Limits: 32 to 122°F (0 to 50°C).
  • Storage Temperature: -4 to 140°F (-20 to 60°C).
  • Humidity: Maximum 95% RH non-condensing.
  • Display: Graphical back lit LCD. 128 x 64 points.Memory:10,742 readings. Recording intervals adjustable from 1 second to 24 hours or manual.
  • Case Protection: IP54 (NEMA 3).
  • Agency Approvals: CE.
  • Current Consumption: 25 mA without back lit display, IR, or buzzer.
  • Weight: 10.5 oz (300 g).
  • Process Connections: Hose 4/6 mm or 1/8″ NPT.



MODELRANGEPRESSUREACCURACY
HM3531DLC1000-28" w.c.Differential0.05%
HM3531DLF1000-120" w.c.Differential0.05%
HM3531DLH1000-14.5 psiDifferential0.05%
HM3531DLJ1000-29 psiDifferential0.05%
HM3531DLK1000-108 psiDifferential0.05%
HM3531DLM1100-245 psiDifferential0.05%
HM3531DLB3000-10" w.c.Differential0.2%
HM3531DLC3000-28" w.c.Differential0.2%
HM3531DLE300 0-80" w.c.Differential0.2%
HM3531DLF3000-120" w.c.Differential0.2%
HM3531DLG3000-200" w.c.Differential0.2%
HM3531DLH3000-14.5 psiDifferential0.2%
HM3531DLJ3000-29 psiDifferential0.2%
HM3531DLK3000-100 psiDifferential0.2%
HM3531DLL3100-145 psiDifferential0.2%
HM3531DLM3100-245 psiDifferential0.2%
HM3531DLC6000-28" w.c.Differential0.1%
HM3531DLF6000-120" w.c.Differential0.1%
HM3531DLH6000-14.5 psiDifferential0.1%
HM3531DLJ6000-29 psiDifferential0.1%
HM3531DLK6000-108 psiDifferential0.1%
HM3531DLM6100-245 psiDifferential0.1%
HM3531GMG3100-7.25 psiGage0.2%
HM3531GMH3100-14.5 psiGage0.2%
HM3531GMJ3100-29 psiGage0.2%
HM3531GMK3100-108 psiGage0.2%
HM3531GML3100-145 psiGage0.2%
HM3531GMM3100-245 psiGage0.2%
HM3531GMN3100-507 psiGage0.2%
HM3531GMR3100-1000 psiGage0.2%
HM3531GMZ3100-1305 psiGage0.2%
HM3531GMN6100-507 psiGage0.1%
HM3531GMR6100-1000 psiGage0.1%
HM3531GMZ6100-1305 psiGage0.1%
HM3531ALJ1000-29 psiaAbsolute0.05%
HM3531ALI2000-15.9 psiaAbsolute0.1%
HM3531ALJ2000-29 psiaAbsolute0.1%
HM3531ALK2000-108 psiaAbsolute0.1%
HM3531ALI3000-15.9 psiaAbsolute0.2%
HM3531ALJ3000-29 psiaAbsolute0.2%
HM3531ALK3000-108 psiaAbsolute0.2%
HM3531ALJ6000-29 psiaAbsolute0.1%
HM3531ALK6000-108 psiaAbsolute0.1%
